EDUCATION IN PRECISION

THE BRAKE CALIPER BOLT GUIDE.

Dialing in your brake setup shouldn't be a headache. Whether you’re figuring out Post Mount sizes or looking for IS to Post Mount adapters, our guide covers the essentials for your frame and fork. Pair your setup with our new titanium brake bolts—engineered with a stress-distribution system to handle high-torque loads without damaging your components.

REF: T0029-0

Grade 5 Aerospace Titanium (Ti-6Al-4V)

FIND YOUR MOUNT

These are the 4 most common brake caliper brake mounts for flat bar bicycles

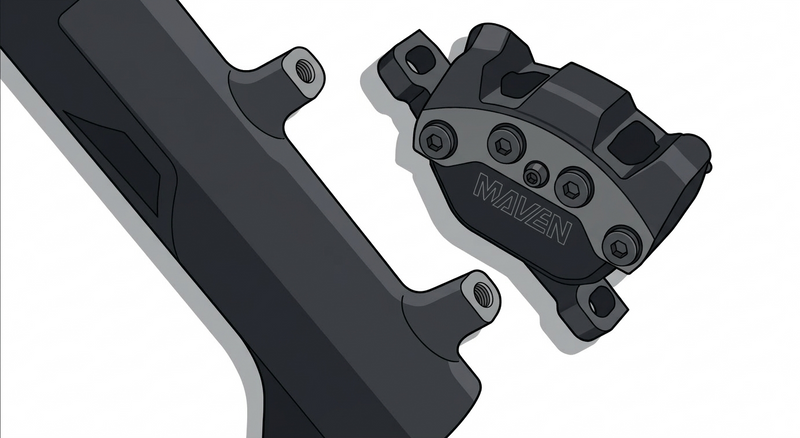

POST MOUNT - DIRECT MOUNT

  • No adapters
  • Installed straight into frame/fork
  • 2 x M6x18mm wide washer
Shop Direct Mount Bolts

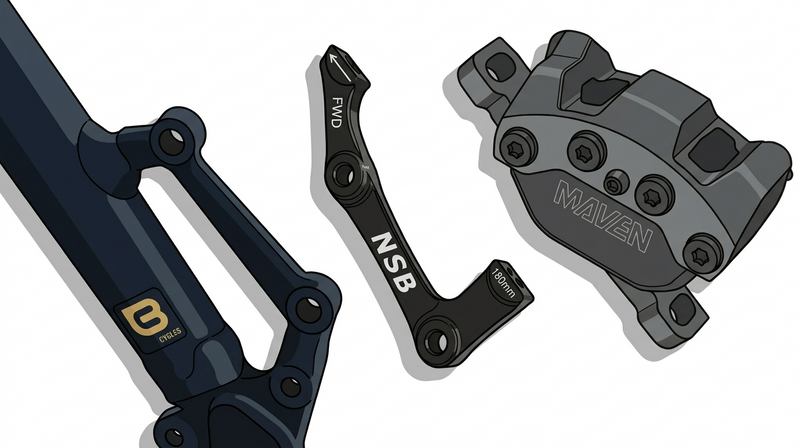

IS MOUNT

  • Caliper + adapter assembly
  • Usually 4 Bolts required
Shop IS Mount Bolts

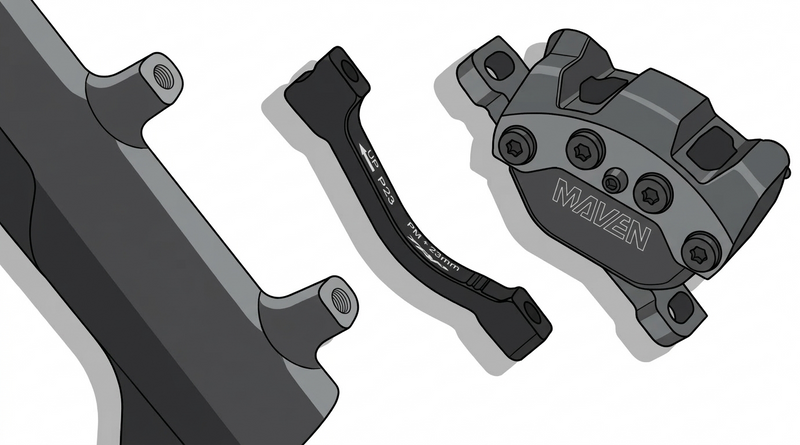

POST MOUNT - 2 Bolt Adapter

  • Requires Conical Washers
Shop Post Mount 2x Bolts

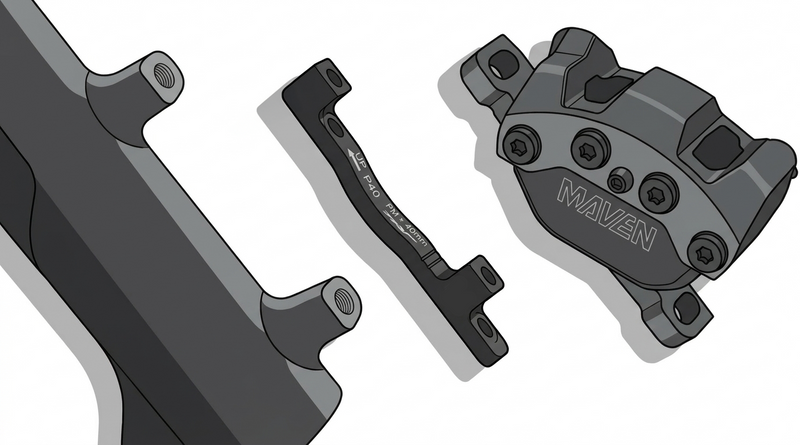

POST MOUNT - 4 Bolt Adapter

  • 2x direct mount bolts + 2 shallow bolts required
  • 4x shallow bolts are also a viable option
Shop Post Mount 4x Bolts
THE FAILURE
Standard bolts concentrate stress, leading to caliper slot deformation

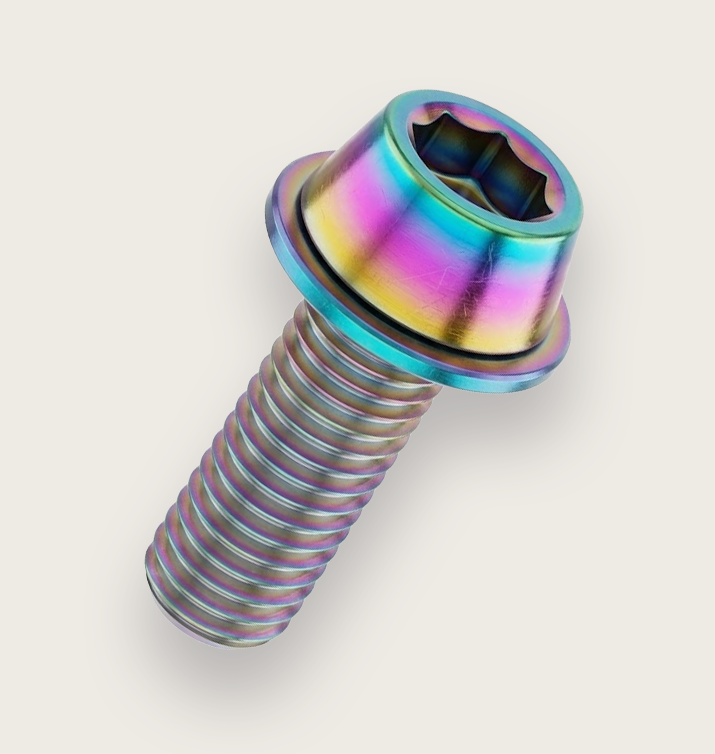

THE INNOVATION
Our oversized washer system distributes load across 40% more surface area.

Engineering Against Fatigue.

Post-mount brake calipers use elongated slots to allow lateral alignment over the rotor. Those slots remove material from the mounting interface. This reduces the contact area under the bolt head. Under braking loads, clamping force concentrates on a very small portion of the aluminum tab. Over time this can cause:
  • Surface marring
  • Local deformation
  • Loss of alignment stability

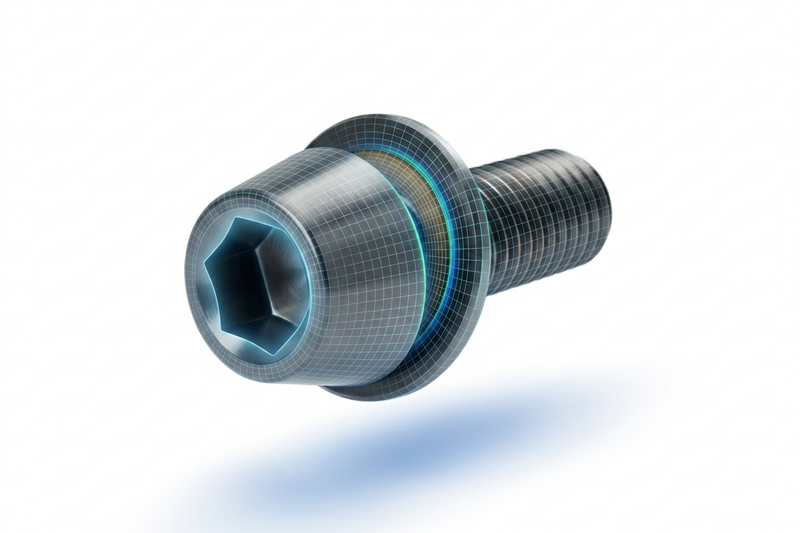

Oversized Washer System

Self-centering design ensures perfect alignment every time, eliminating side-loading torque.

Atomic Precision

Cold-rolled threads provide a 30% increase in fatigue life compared to cut threads.

Structural hardware. Engineered properly.

Shop All Caliper Bolts Shop Direct Mount System
