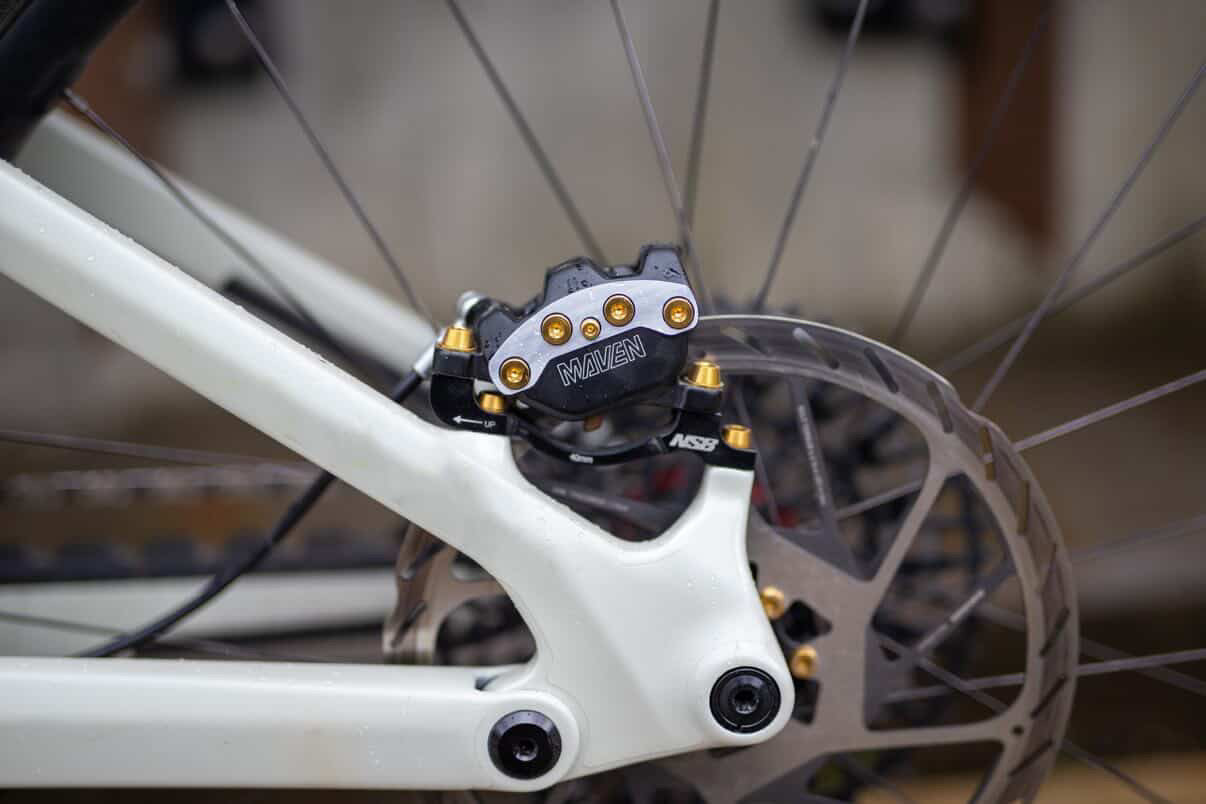

Post Mount 4 Bolt - Titanium Bolt kit

Name: Post Mount 4 Bolt - Titanium Bolt kit
Brand: Thetibolt
Price: 35.0 CAD
Availability: InStock

$35.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

Post Mount Disc Brake Hardware Kit | Four-Bolt Type

This premium titanium hardware kit is designed for high-offset Post Mount (PM) adapters that utilize a four-bolt mounting system. This configuration mounts the adapter to the frame/fork with two bolts, and the caliper to the adapter with an additional two bolts, providing maximum stability for large-diameter rotors.

Kit Contents

2x M6 x 18mm Bolts (T0029)
2x M6 x 18mm Shallow Head Bolts (T0021)
Note: Required for a complete single caliper/adapter assembly.

Warning

Use Anti-Seize compound and a torque wrench for a correct installation

Features

High quality titanium
PVD coated
Corrosion free
Lighter and stronger than steel bolts

Shipping

Worldwide Shipping Available

View full details

Technical Specs

Precision engineered for performance

Material

Aerospace Grade 5 Titanium

Thread

rolled 1.0mm Pitch

Finish

High-Durability PVD

Weight

~50% lighter than steel

Compatibility & Fitment

Fits most "Four-Bolt" style Post Mount adapters from major manufacturers:

Brand	Compatible Post Mount Adapters
Shimano	SM-MA-F203P/P, SM-MA-F220P/PM
SRAM	20 P (post-2020 models), 40 P
Magura	QM28 (PM5-180), QM42 (PM6-203), QM26 (PM7-203)
Hope	HBMC, HBMH, HBMK, HBML, HBMM, HBMP, HBMQ
NSB	17mm, 20mm, 23mm, 40mm, 43mm, 20mm (200 to 220), 23mm (200 to 223)
Oak Components	PM +40/43 MM
Tektro / TRP	P40, P43
Hayes	21, 39, 40, 41, 42, 43
Formula	PM 6" to F220 (Front/Rear), PM 6" to F203 (Front/Rear)
Others	Trickstuff: PMPM 43; KCNC: F180 P/P, F203 P/P; Paul Comp: +20mm, +40mm; Reverse: +60mm, 200 Front, 203 Front

Tech Tip:

This kit utilizes a combination of standard and shallow-head M6 bolts to ensure clearance within the adapter body. Always verify that the shallow-head bolts are used in the specific locations designated by the adapter manufacturer to avoid interference with the brake caliper or rotor.
