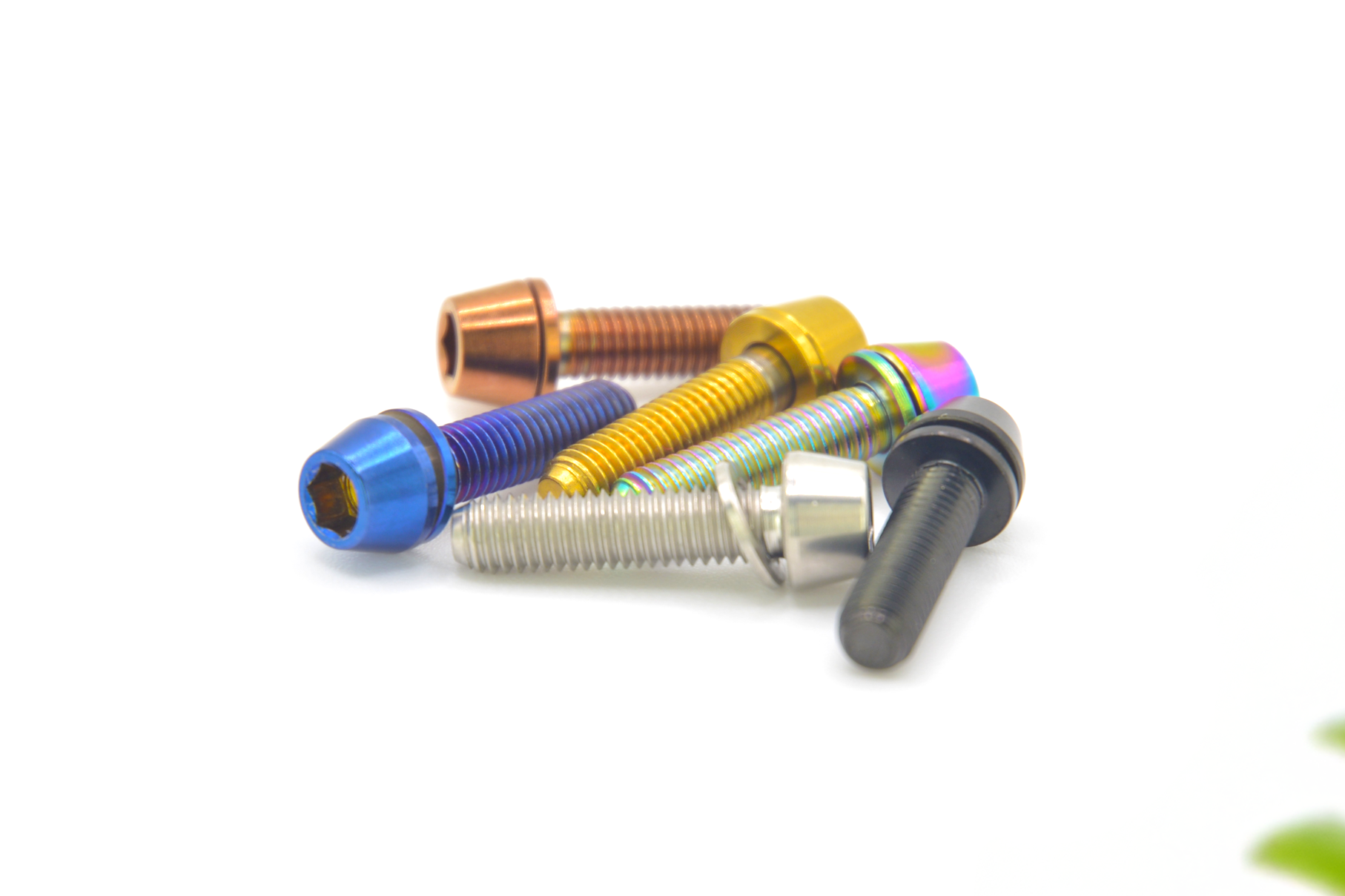

M5X20 TAPERED

• Part number: T0004
• Name: M5x20 Taper Head Ti-Bolt
• HEAD TYPE: Tapered
• HEAD TOOL INTERFACE: HEX4
• SIZE: M5
• THREAD PITCH: 0.8
• SHAFT LENGTH (mm): 0mm
• THREAD LENGTH (mm): 20mm
• HEAD DIAMETER: 8.5mm
• HEAD HEIGHT: 5mm + 1mm washer
• Comment: With trapped washer to avoid loosening and damages
• Weight: 2.3 g

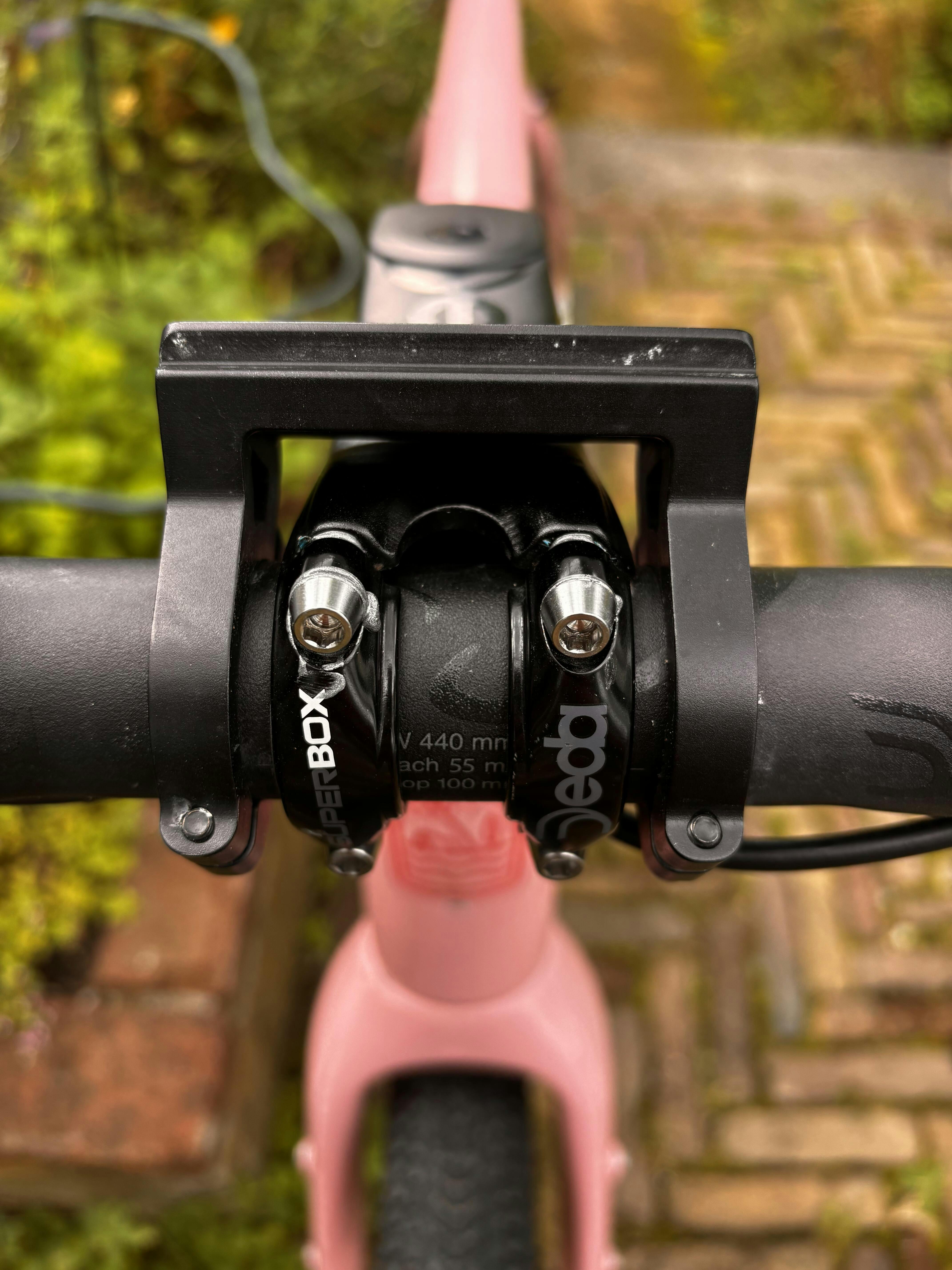

• USE: Stem, Seatpost Clamp, Flatmount Brake Calipers, Cage Mount, Bottle Cage, Cargo Cage
• Search words: Titanium, Bolt, Bicycle, Bike, Titanium Grade 5, Ti-6Al-4V
• Max Torque: 12Nm
• Installation advice: Link to installation guide
• Disclaimer: Warning! Choking Hazard, Small Parts, Product appearance may vary slightly. Use at your own risk!
• Finish: Polished, PVD coating

Bolts are sold as single units
