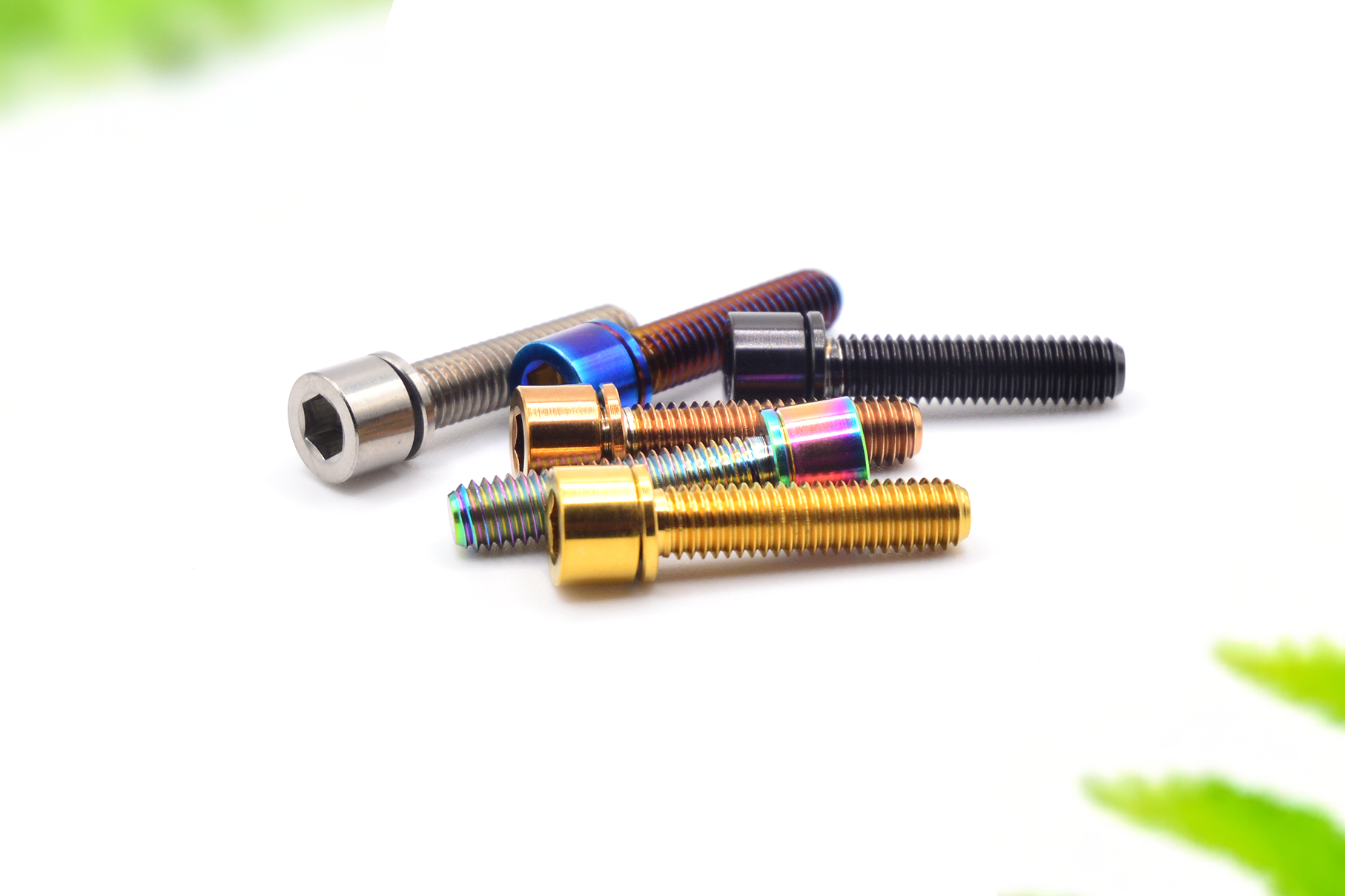

M5x22 CAPPED NARROW

Part Number: T0028
Name: M5x22 Narrow Capped Head Ti-Bolt
Size: M5
Shaft Length: 22mm
Thread Pitch: 0.8
Thread Length: 0mm
Head Type: Narrow Capped
Head Diameter: 7.7mm
Head Height: 5mm + 1mm washer
Head Tool Interface: HEX4
Weight: 2.4g
Use: Oneup Dropper Lever, seatpost clamp, dropper lever clamp
Search Words: Dropper Lever Clamp, Seat Post Clamp
Max Torque: 12Nm
Installation Advice: https://www.thetibolt.com/pages/installation-guide
Disclaimer: Warning! Choking Hazard, Small Parts, Product appearance may vary slightly. Use at your own risk!
Finish: Polished, PVD coating
