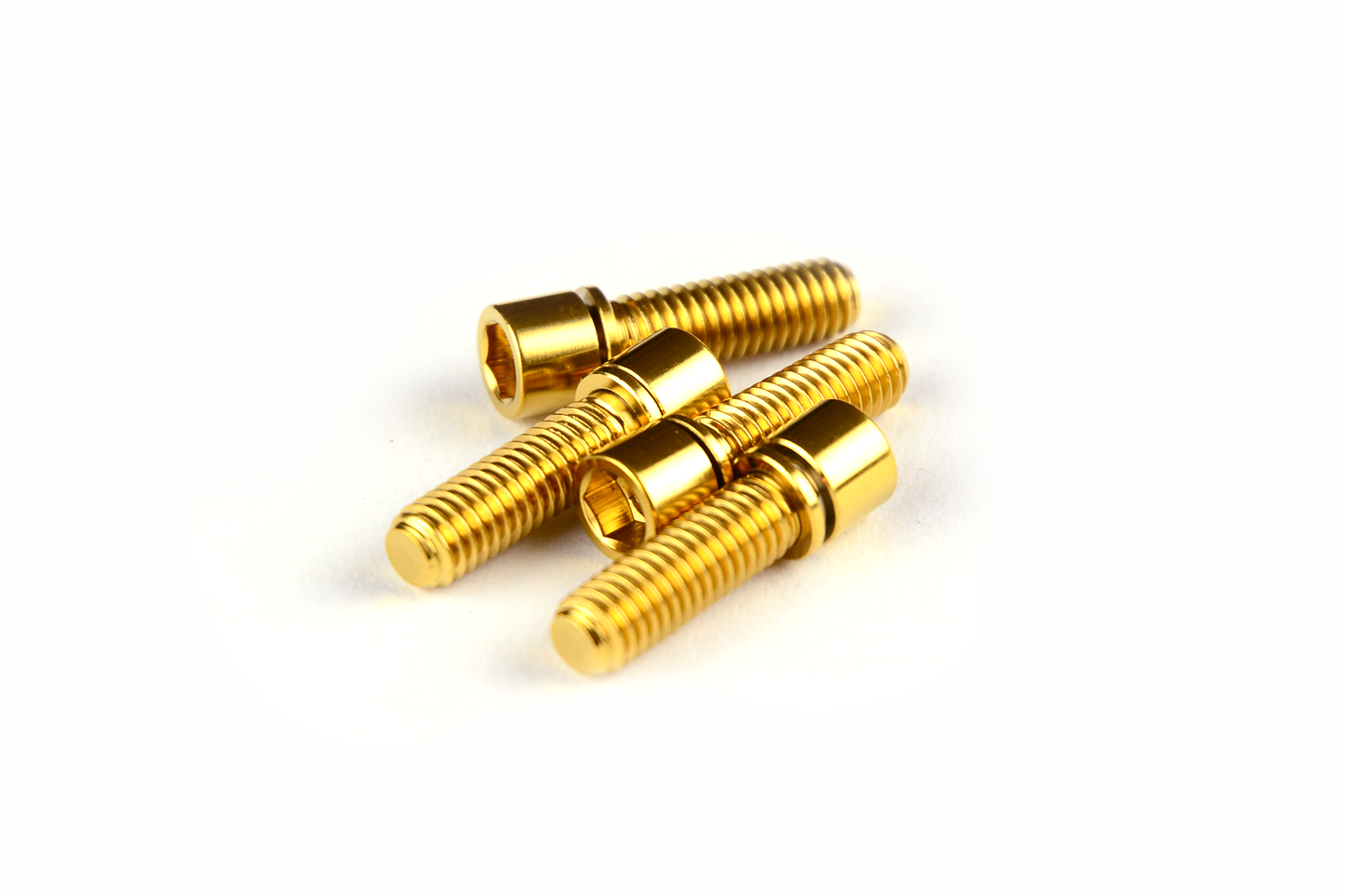

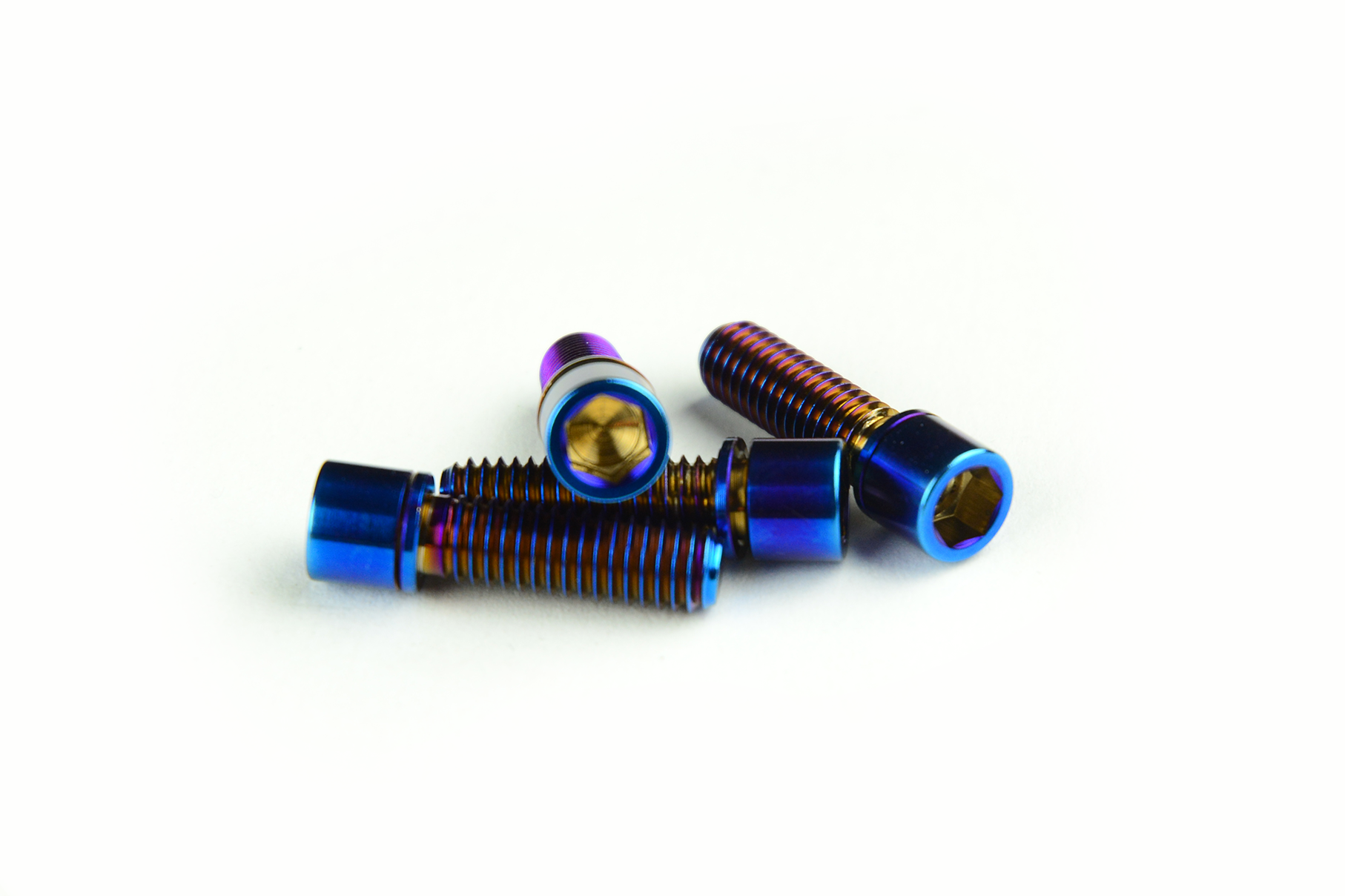

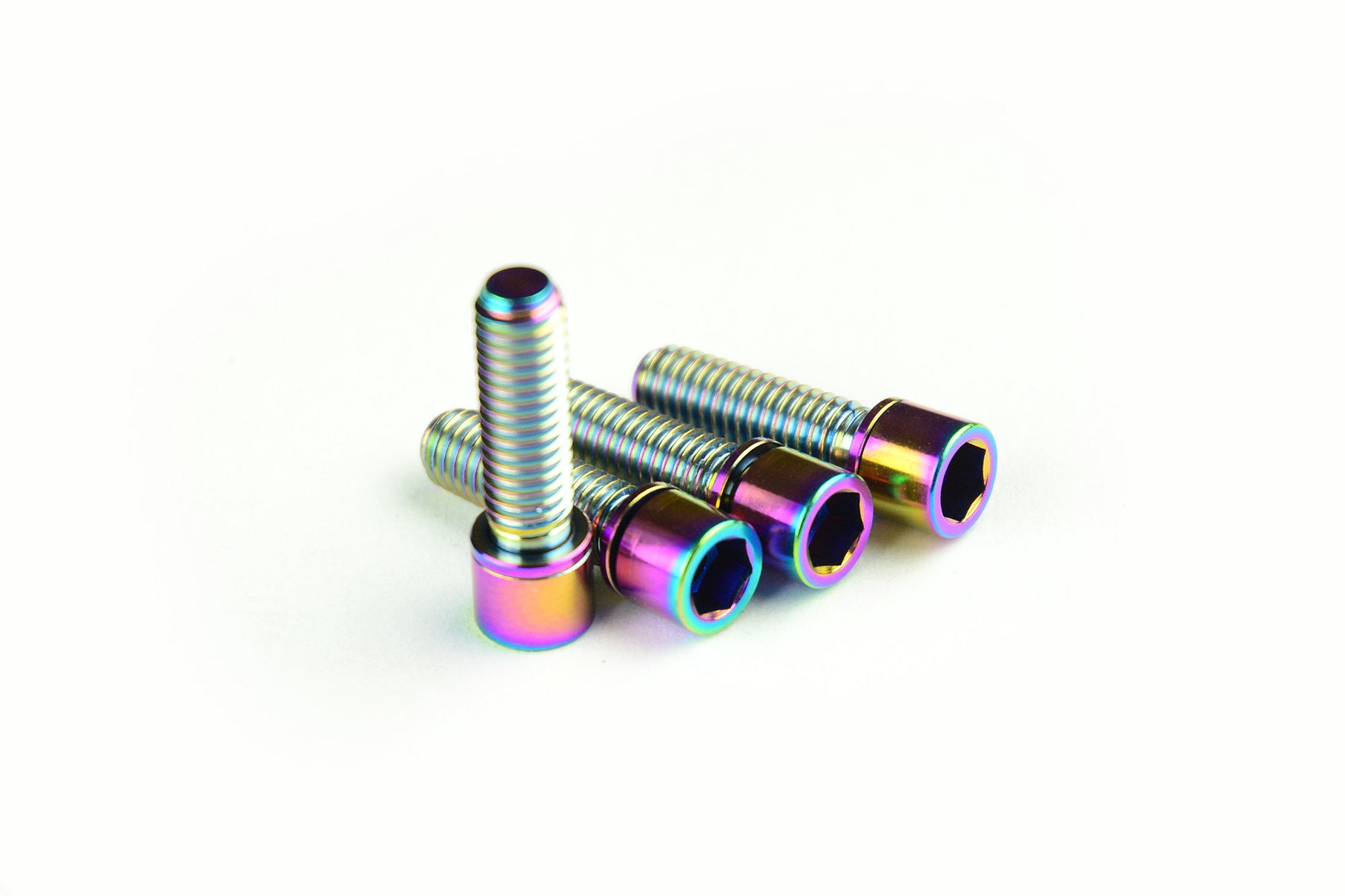

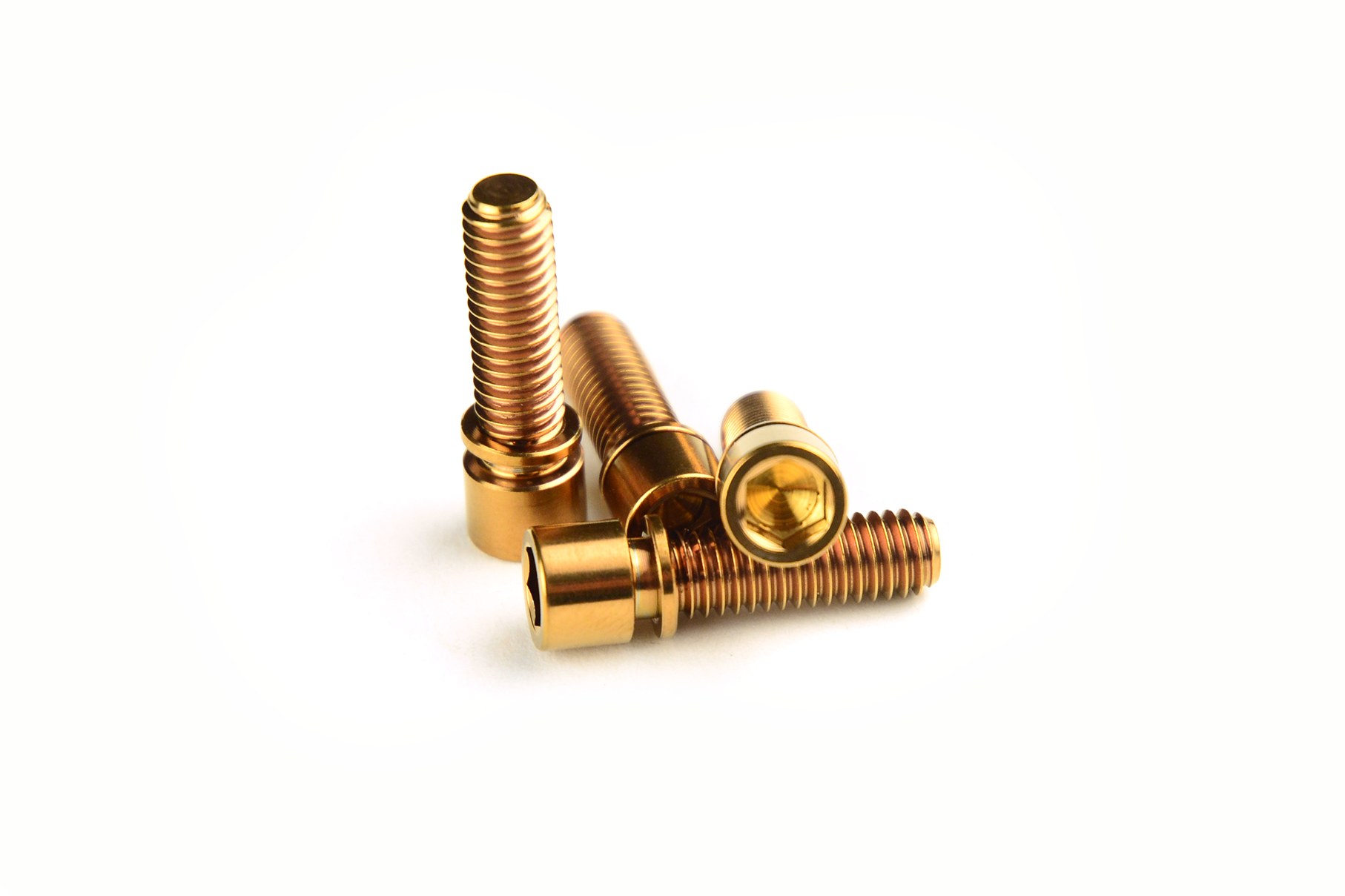

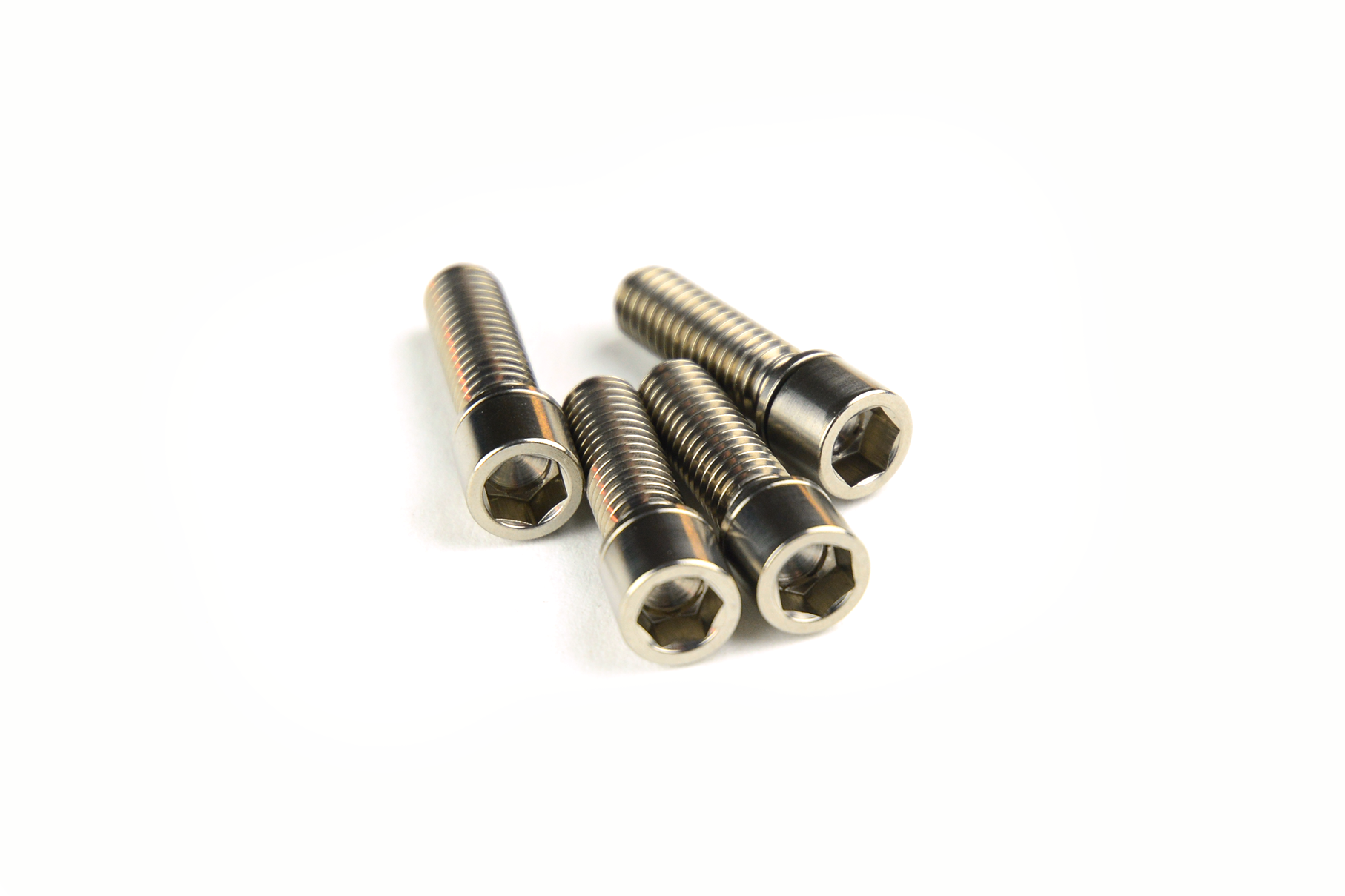

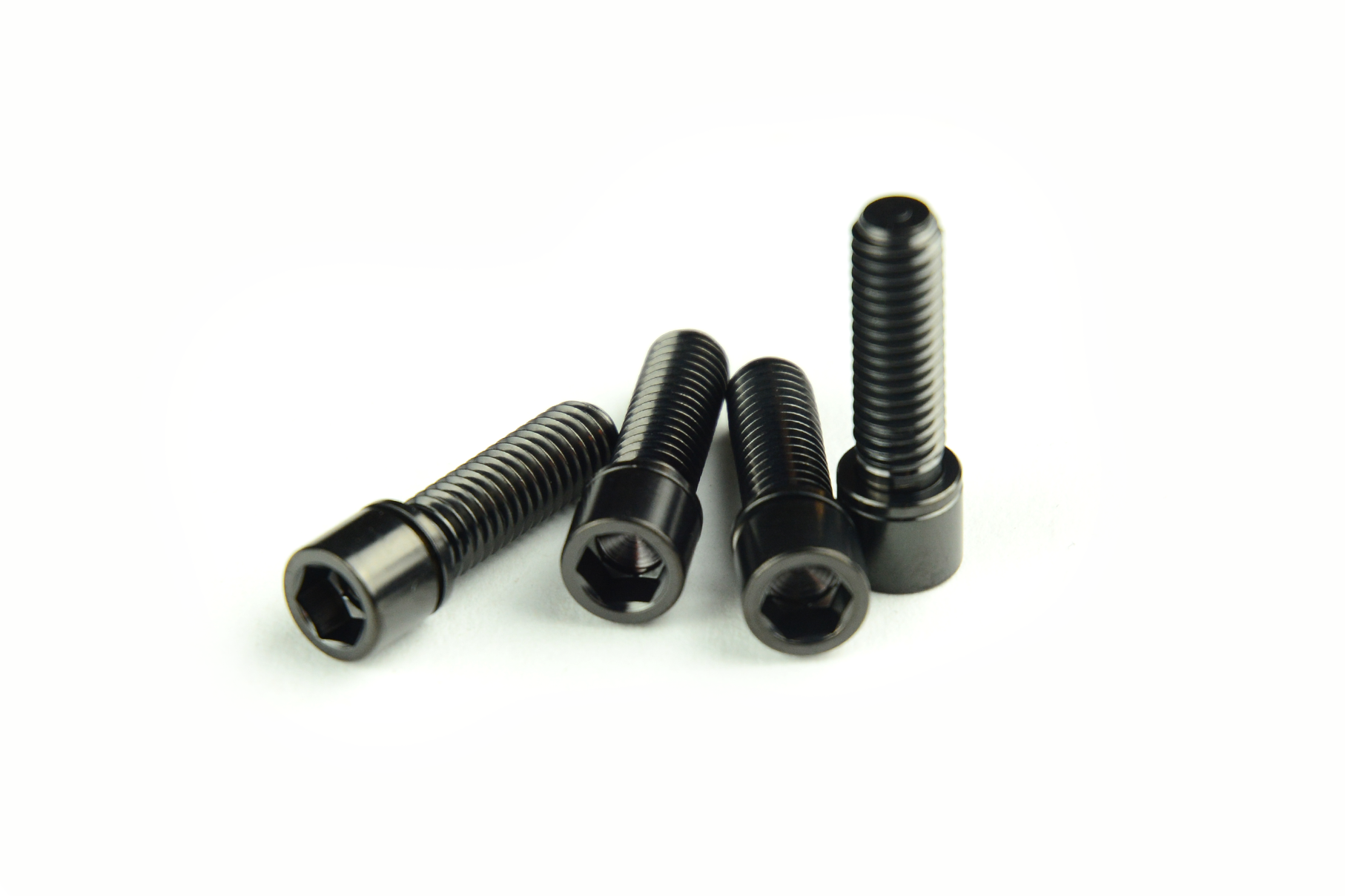

M6X20 CAPPED NARROW

M6x20 Capped Narrow Titanium Bolt, sold individually for versatile applications. Featuring a narrow capped head, this bolt provides a secure fit in tight spaces, ideal for riders who need reliable, high-performance hardware. Made from premium titanium, it offers exceptional strength and lightweight functionality—perfect for precision-focused cyclists.

• Part number: T0026
• Name: M6x20 Narrow Capped Head Ti-Bolt
• HEAD TYPE: Capped
• HEAD TOOL INTERFACE: HEX5
• SIZE: M6
• THREAD PITCH: 1.0
• SHAFT LENGTH: 0mm
• THREAD LENGTH: 20mm
• HEAD DIAMETER: 8mm
• HEAD HEIGHT: 6mm + 1mm washer
• Comment: With trapped washer to avoid loosening and damages
• Weight: 2.9 g
• USE: Stem
• Search words: Titanium, Bolt, Bicycle, Bike, Titanium Grade 5, Ti-6Al-4V
• Max Torque: 20Nm
• Installation advice: Link to installation guide
• Disclaimer: Warning! Choking Hazard, Small Parts, Product appearance may vary slightly. Use at your own risk!
• Finish: Polished, PVD coating
